Acoustic partition wall system
ACS 38
The ACS 38 system is designed to create slender aluminum walls, display cases and interior partitions. The structure has no thermal insulation, but provides high sound insulation, making it ideal for spaces that require elegance and effective sound attenuation.
Maximum space, minimum frame
Sleek and elegant design
Enhanced static with a wide range of clips
Fast and efficient prefabrication
ACS 38
Versatility and modern aesthetics.
The ACS 38 system has a joint National Technical Assessment with the ACS 50 system, which confirms its high quality and reliability.

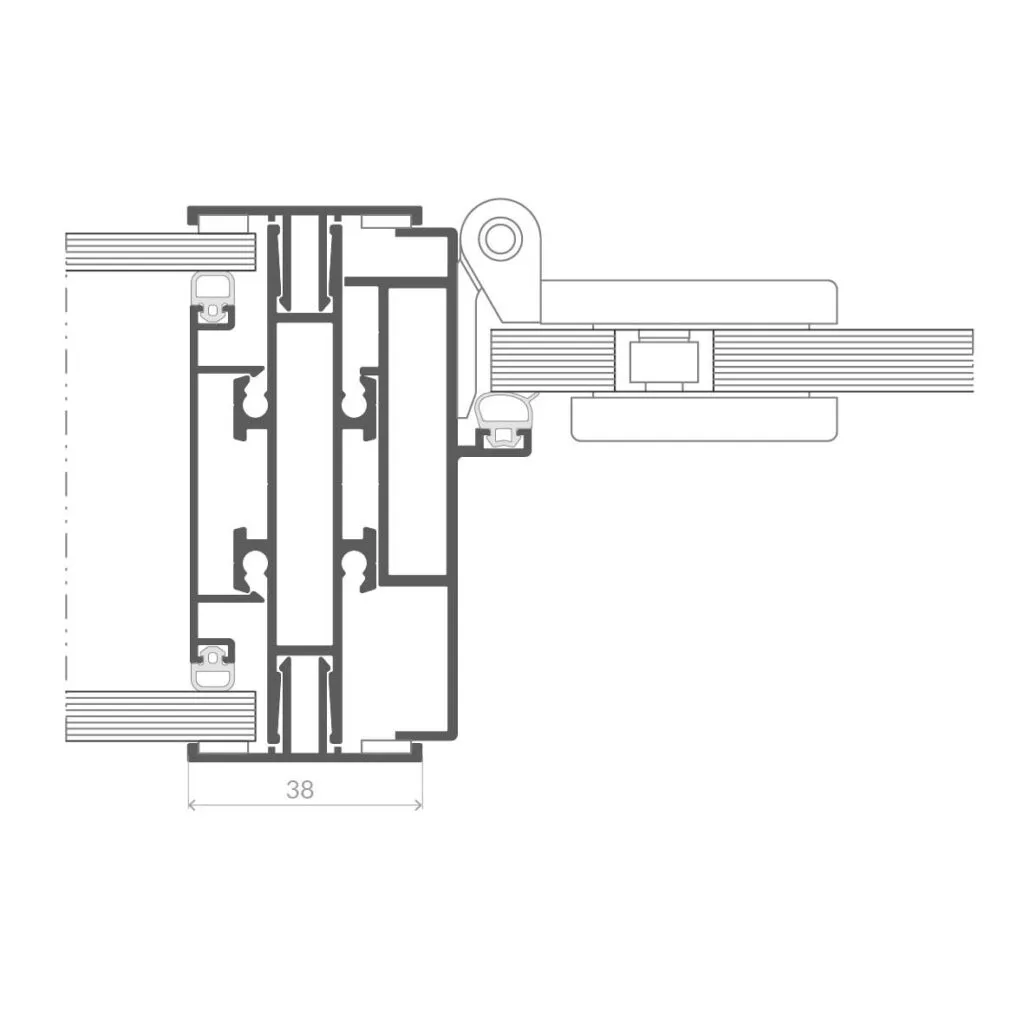

The solution allows the use of a variety of door designs, including the narrowest slim frames, and the design of rooms with self-supporting canopies (so-called boxes). Thanks to the combination of high functionality and elegant design, the system meets both functional and aesthetic requirements.
Parameters and details
| Maximum wall height | 5300 mm |

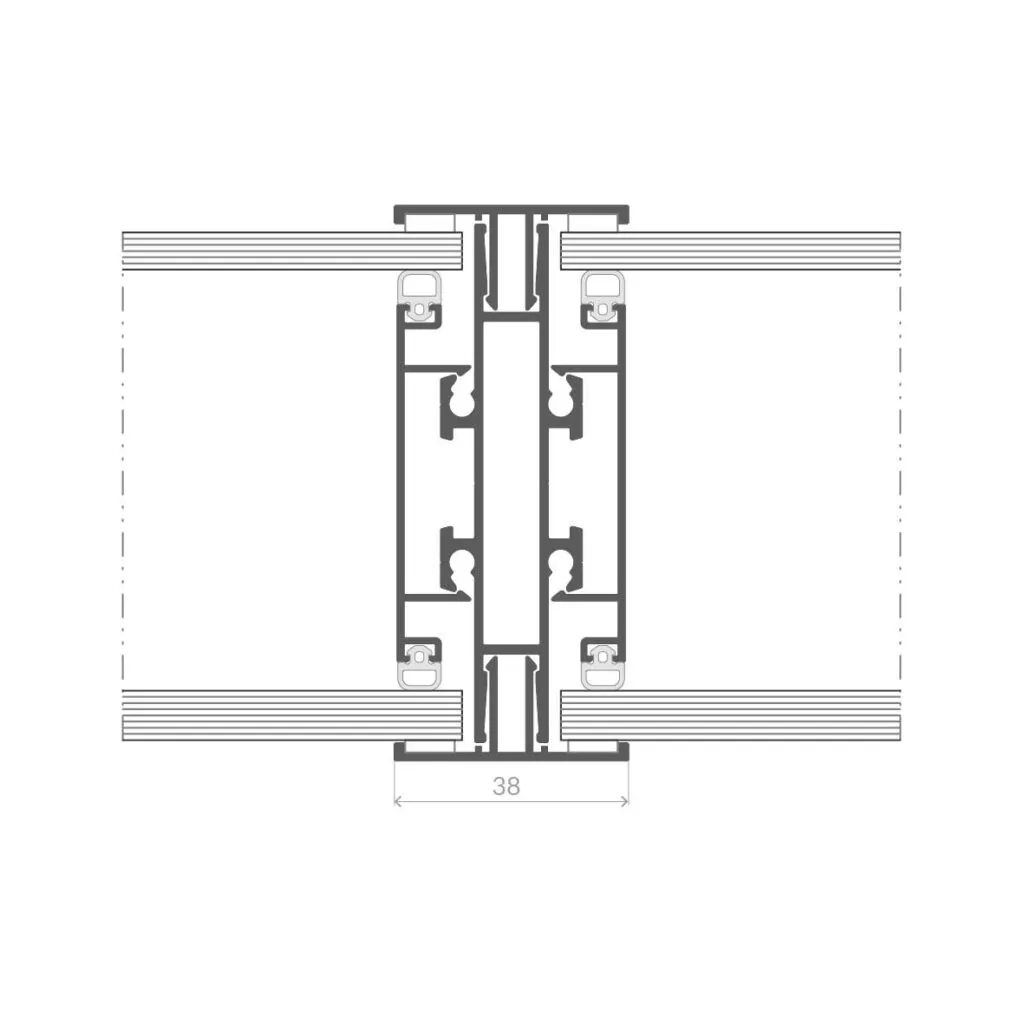

| Minimum visible frame width | 38 mm |
| Profile construction width | 38 mm |
| Maximum area of the glazing module | up to 6.0 m2 |
| Vertical post spacing | up to 2500 mm |
| Glazing range | 5-13 mm |
| Sound insulation for opaque version | up to 52 dB |
| Sound insulation for the transparent version | up to 46 dB |
| Air infiltration tightness | 0.01 m3 (mhdaPa2/3) |
| Resistance to wind load | Class C3/B3 |
