Window and door system for interior development

ACS 50

The system is designed to create non-thermally insulated partitions such as storefronts, windows and aluminum and all-glass doors. It allows the construction of single- and double-leaf versions, providing design flexibility and a modern, elegant appearance.

Learn about the product

Smoke-proof doors and partitions

The system allows the construction of smoke-proof interior doors and partitions, providing increased safety and security in spaces that require smoke control.

Functional feed window in the door

The system allows for the integration of an infeed window in the door, which increases convenience of use and allows the design to be adapted to specialized needs.

Flexible arch structures

The system makes it possible to create arched window and door structures, including welded ones, providing greater design freedom and aesthetic adaptation to individual architectural requirements.

Safety and functionality - emergency exit doors

The system makes it possible to make escape doors, including emergency and panic doors, ensuring compliance with safety standards and reliability in situations requiring rapid evacuation.

ACS 50

Versatility and aesthetics in a modern setting.

The ACS 50 system has a joint National Technical Assessment with ACS 38, which confirms its high quality and reliability.

Thanks to the central glazing and the use of all-glass doors with flush frame and door leaf, the design is characterized by a modern and elegant appearance. The central gasket further increases the tightness and improves the acoustic insulation of the door.

Detailed parameters

Parameters and details

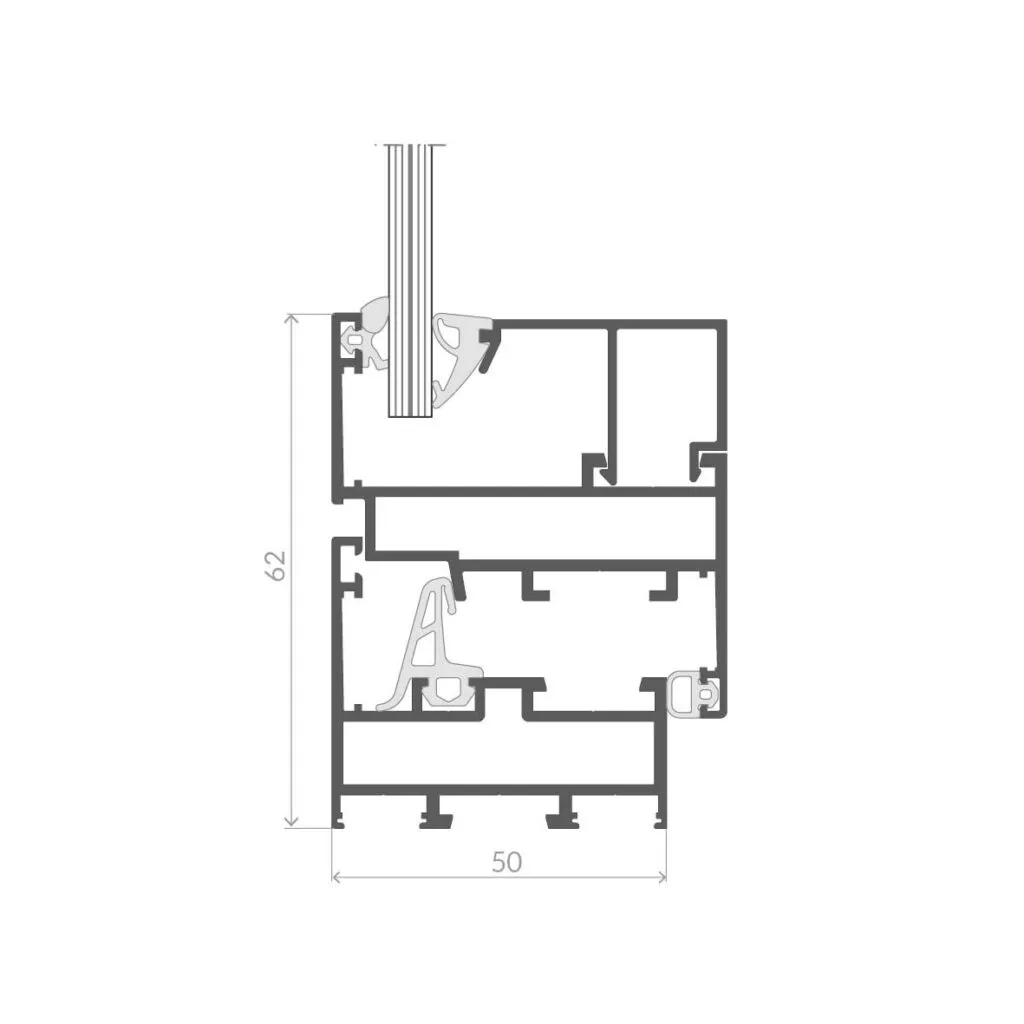

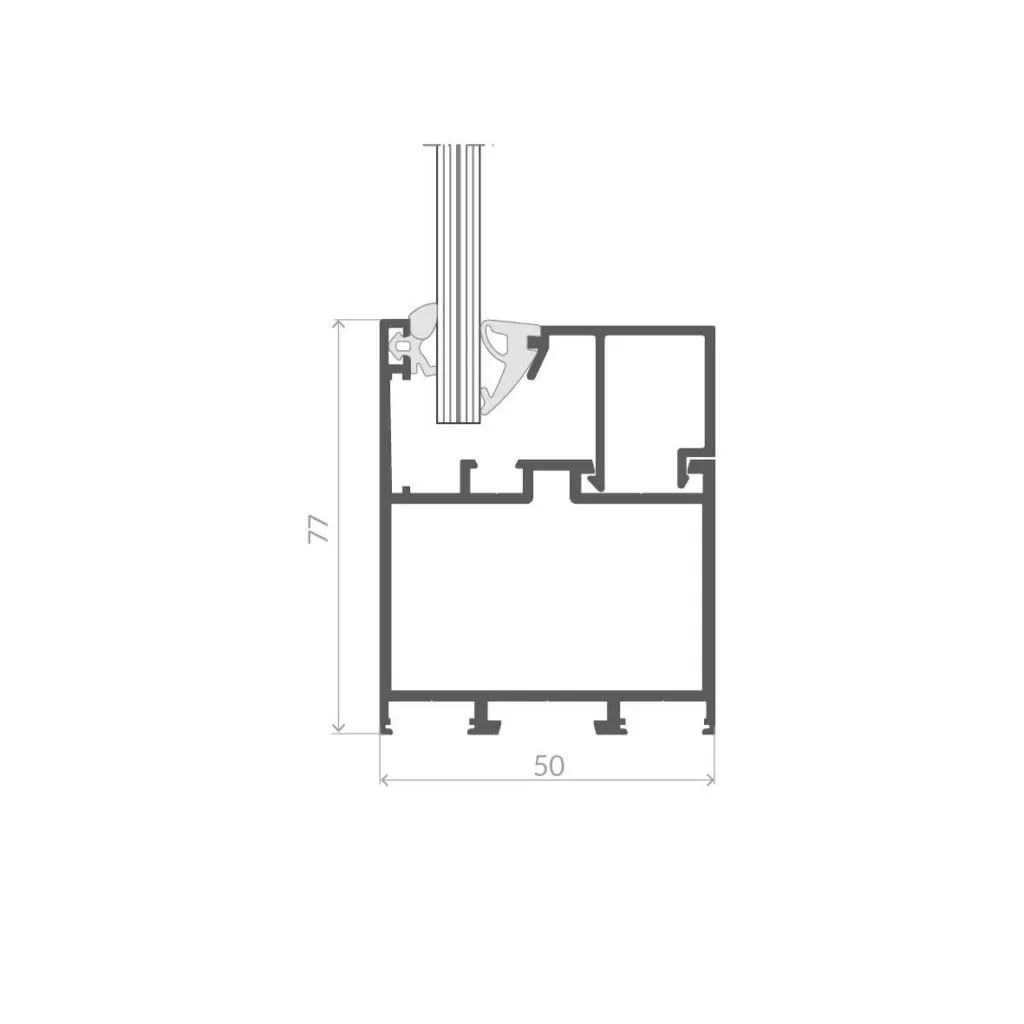

Structural depth of frame profiles50 mm
Structural depth of the sash profiles59 mm
Maximum wall height5300 mm
Glazing rangeup to 40.5 mm
Scope of applicationCat IVb according to EAD 210005-00-0505
Mechanical strength of the doorclass 3
Smoke tightness (single point lock)Sa class, S200
Air infiltration tightness0.01 m3 (mhdaPa2/3)
Sound insulation of the doorup to 38 dB
Sound insulation of the laboratory no-threshold door28 dB
