System of thermally insulated fire windows
AS 110EI
The AS 110EI five-chamber system is designed to construct fireproof windows, offering the highest thermal insulation on the market. It combines advanced fire protection with excellent energy efficiency to ensure safety, durability and comfort.
Innovative 5-chamber technology
Flush sash for uniform aesthetics
Slim profiles for maximum illumination
Elegant aluminum drain plugs
AS 110EI
Stability, sound insulation and fire protection.
The advanced design of the system provides excellent statics and high sound insulation, increasing user comfort.
According to the Classification Report of the ITB, the system allows the construction of external single-leaf windows in the fire resistance class EI 30, which can be used in individual buildings, fixed in rigid structures, guaranteeing the highest level of safety and durability.
Parameters and details
| Maximum sash height | 2322 mm |
| Maximum sash width | 1494 mm |

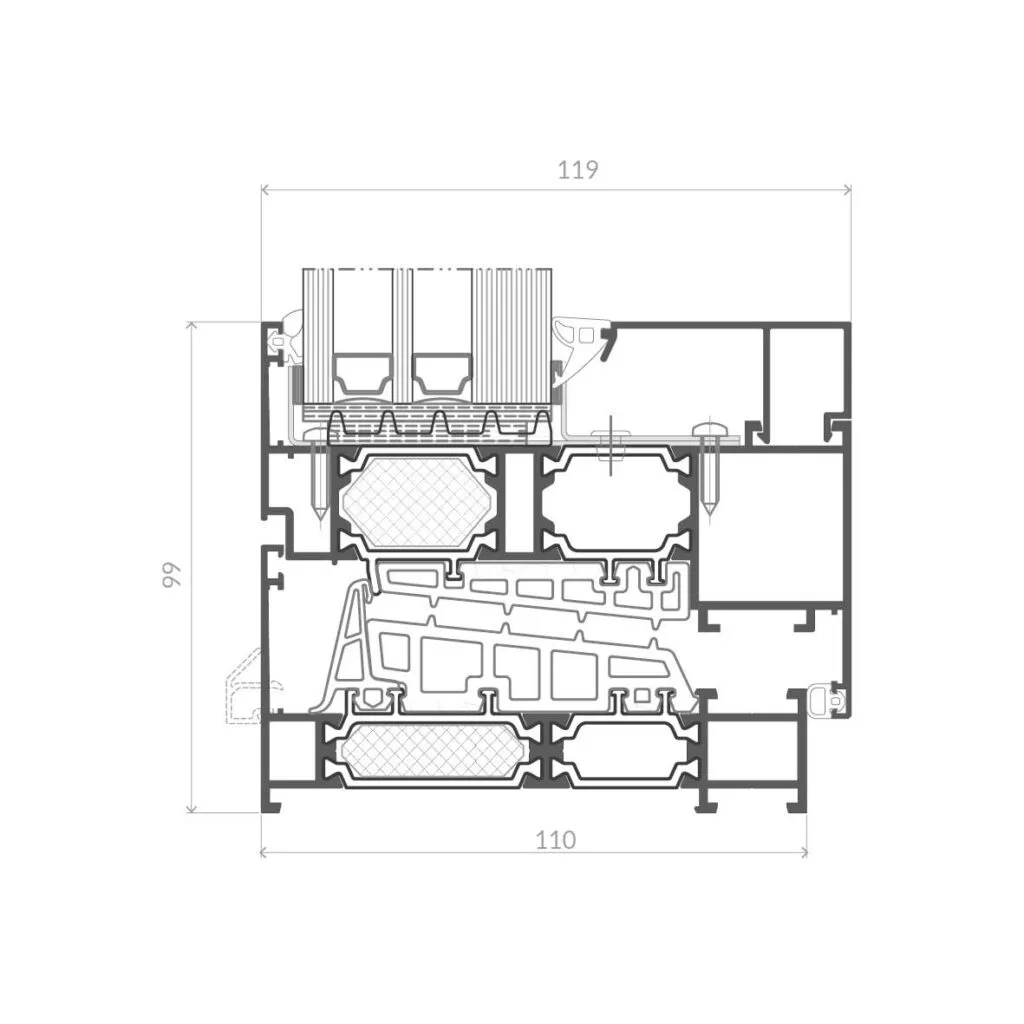

| Frame depth | 110 mm |
| Depth of window sashes | 119 mm |
| Minimum visible frame width | 54 mm |
| Minimum visible sash width | 32 mm |

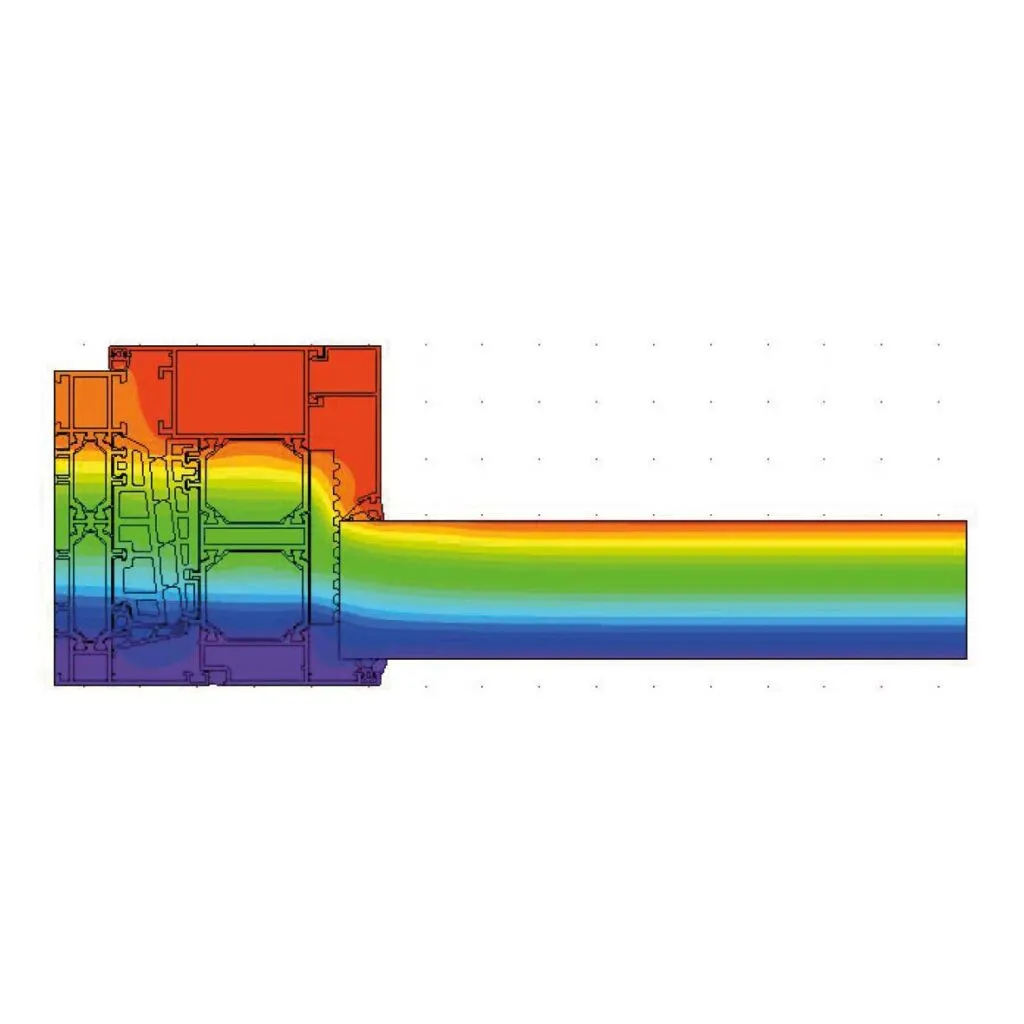

| Thermal insulation Uw | from 0.8 W/m2K |
| Fire resistance class | EI 30 |
| Air permeability | class 4 |
| Waterproof | E1950 class |
| Resistance to wind load | Class C5/B5 |
| Mechanical strength | class 4 |
Download the product sheet
Get in touch with us!
Our process is a combination of expertise, cutting-edge technology and a customized approach, so you get solutions that stand out in quality, functionality and design. Our team of experts will help you determine your needs, advise you on the best solutions and create a concept that fits perfectly into your project.
