Lift-and-slide door system
AS 178HS Modern
A new proposal in Immobi Okna’s product range, a system designed to create large lift-and-slide doors with excellent thermal insulation that blend harmoniously with modern architecture.
Fittings
Insulation
Corners

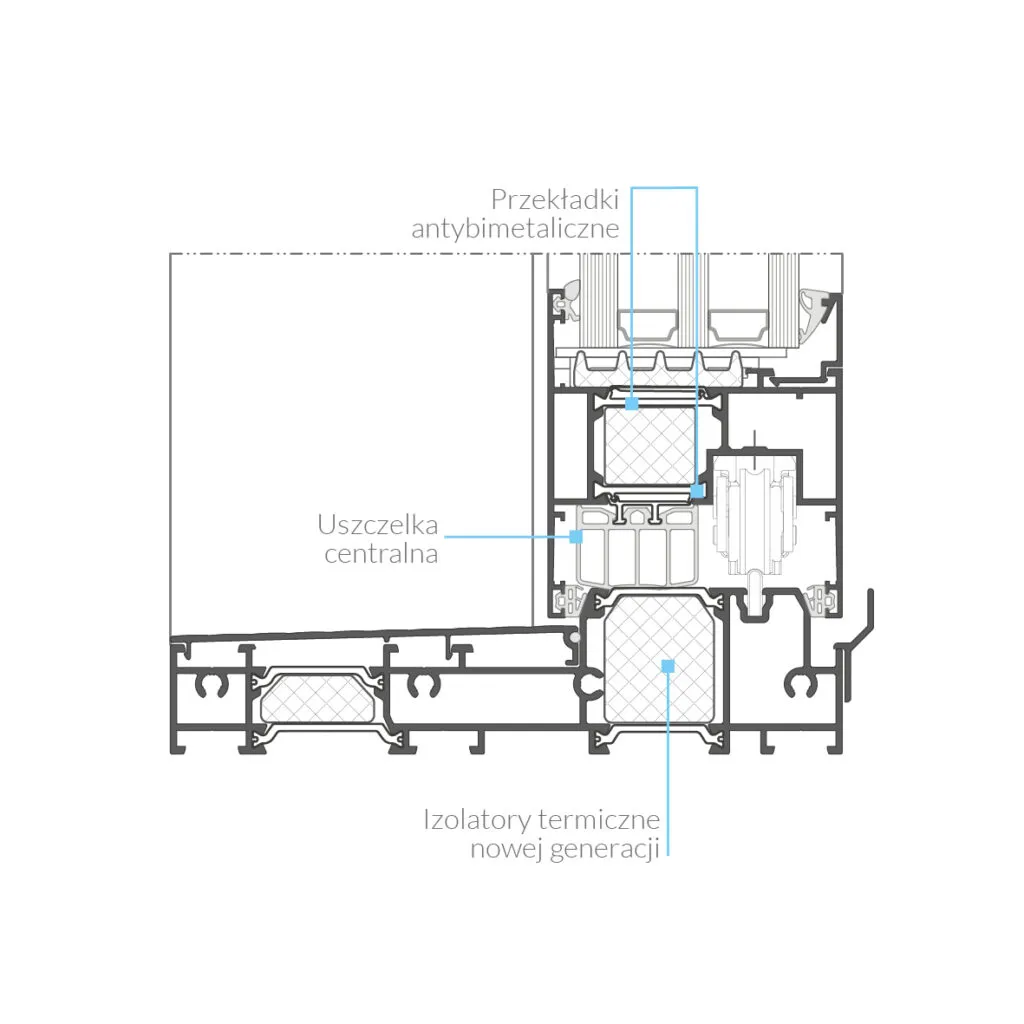

Profile
AS 178HS Modern
Large-size door
with thermal insulation, ideal for modern architecture.
Thanks to numerous improvements, the AS 178HS Modern system guarantees efficient and trouble-free prefabrication and installation.
Designers have optimized the number of components needed to make the whole thing, and the use of frame profiles cut at 90 degrees and screwed together allows the structure to be transported in parts and assembled directly on site.
Parameters and details
| Maximum sash height | 3300 mm |
| Maximum sash width | 3300 mm |
| Maximum wing weight | 600 kg |
| Narrow pole | 25 mm, 50 mm |
| Maximum thickness of glazing package | 59 mm |
| Sash depth | 78 mm |
| Thermal insulation Uw | from 0.7 W/m²K |
| Air permeability | class 4 |
| Waterproof | class 9A |
| Resistance to wind load | Class C3/B3 |
