Lift-and-slide door system
AS 178HS PRO SLIM ULTRA variant
An innovative approach to HST doors in a minimalist design. The new ULTRA release of the AS 178HS PRO SLIM system addresses the need to simplify and reduce the cost of narrow-profile solutions, offering an alternative to complex designs.
Versatility
Technology
Traditional glass installation
Discreet development
AS 178HS PRO SLIM ULTRA variant
Minimalist large-size doors.

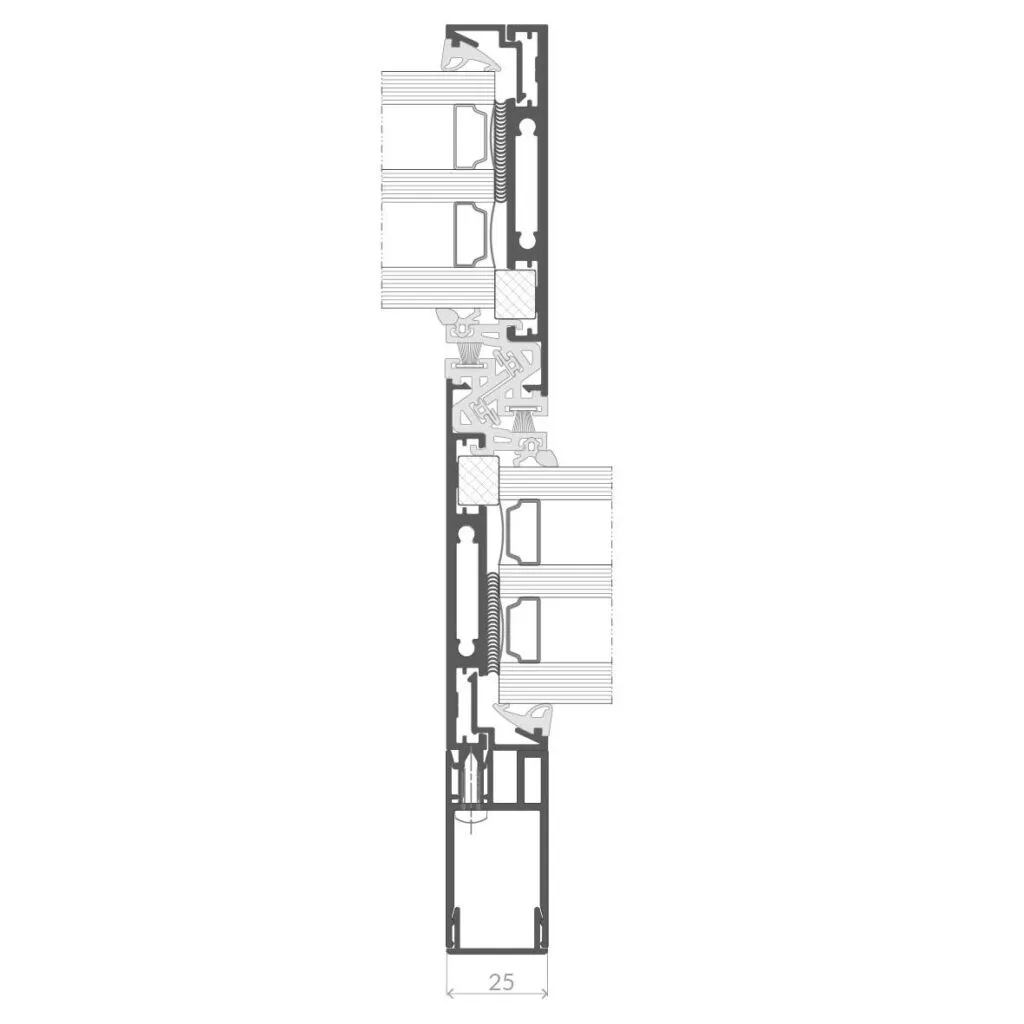

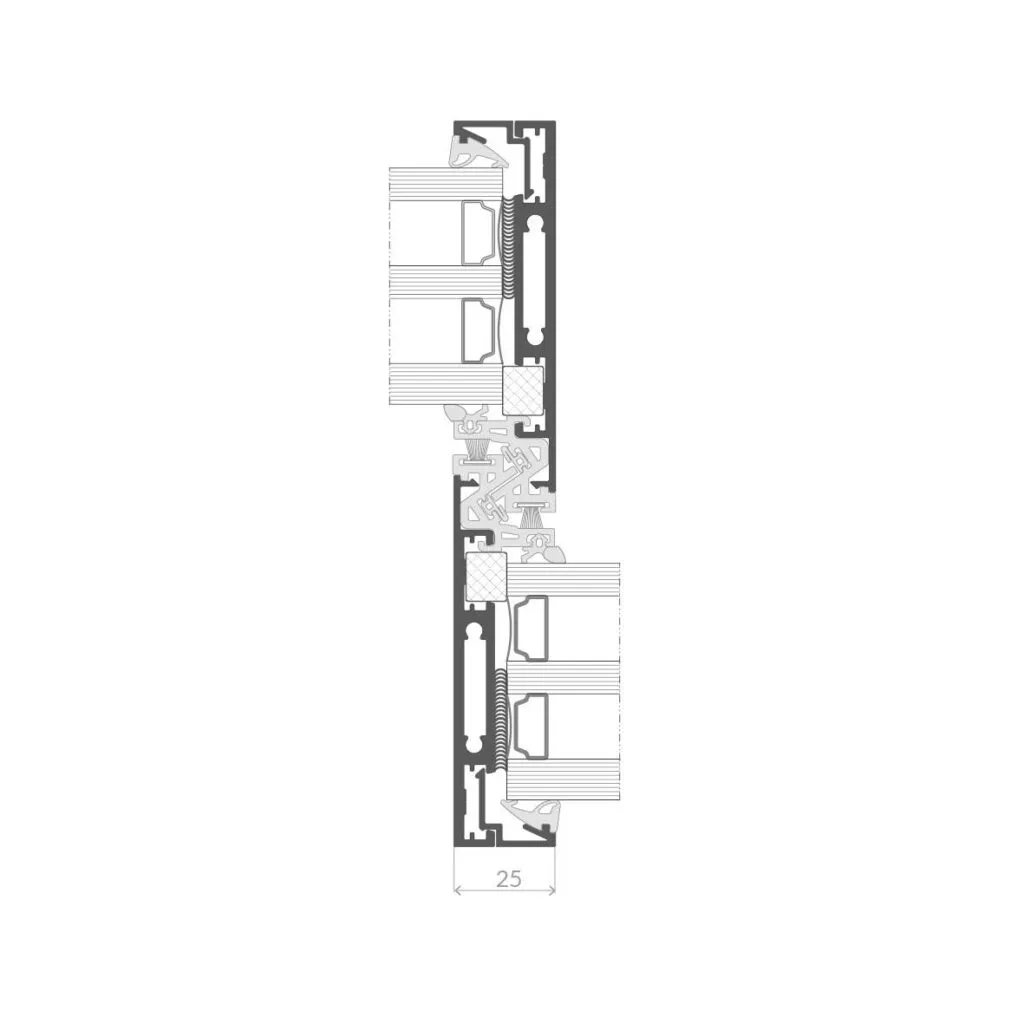

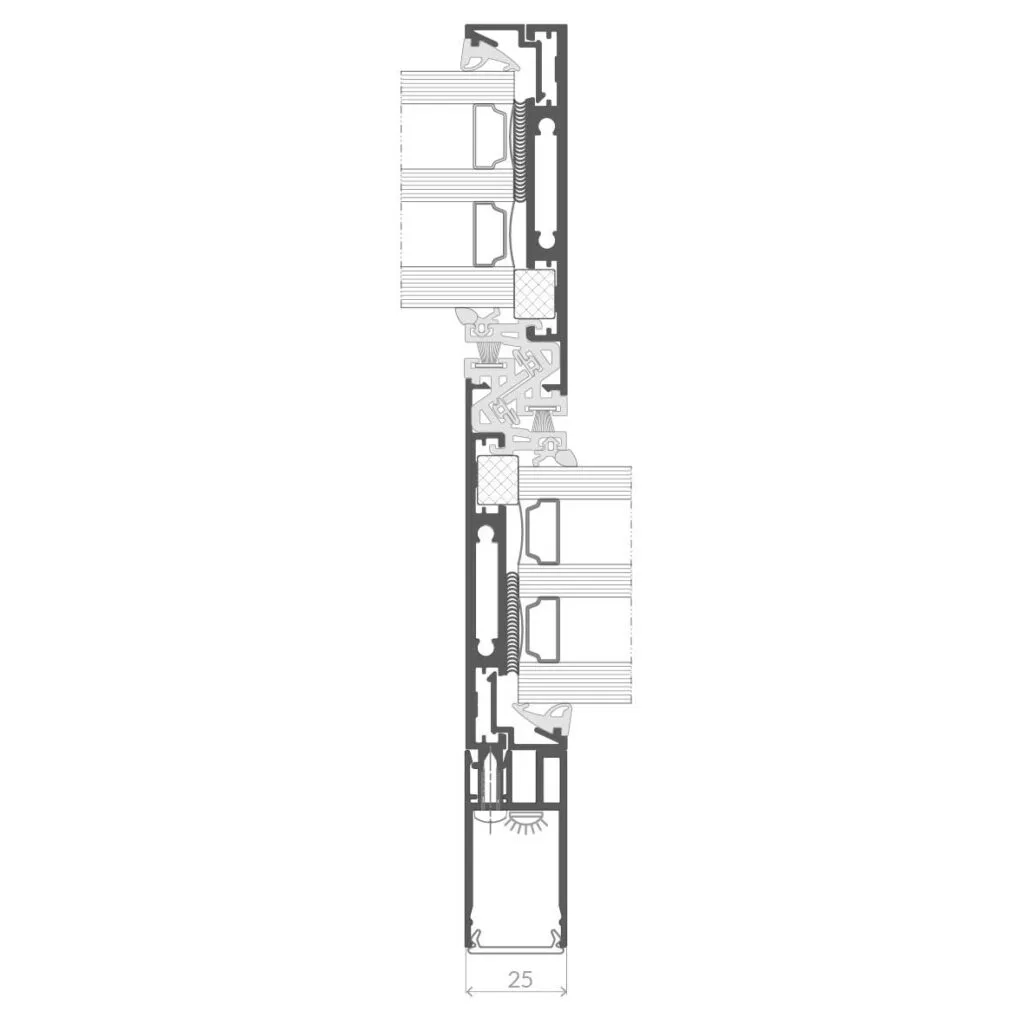

AS 178HS PRO SLIM system in ULTRA version is a solution for demanding users, combining modern design with functionality. It allows the creation of large lift-and-slide doors with the narrowest center post available on the market at only 25 mm wide.
Thanks to its versatile design and the use of innovative technologies, such as a leak-proof labyrinth strip, state-of-the-art TPE seals, and the ANTY-BI-METAL system that minimizes deformation caused by temperature changes, the system offers high quality and durability in an economical package.
Parameters and details
| Maximum sash height | 3300 mm |
| Maximum sash width | 3300 mm |
| Maximum wing weight | 600 kg |
| Narrow pole | 25 mm |
| Maximum thickness of glazing package | 59 mm |
| Sash depth | 78 mm |
| Thermal insulation Uw | from 0.7 W/m²K |
| Air permeability | class 3 |
| Waterproof | class 8A |
| Resistance to wind load | Class C3/B3 |
