Three-chamber window and door system
AS 75 door
The system is designed to create thermally insulated doors that remain stable even with large temperature differences between the interior and exterior. Thanks to the use of ANTY-BI-METAL spacers, it effectively prevents deformation, ensuring the durability and reliability of the structure.

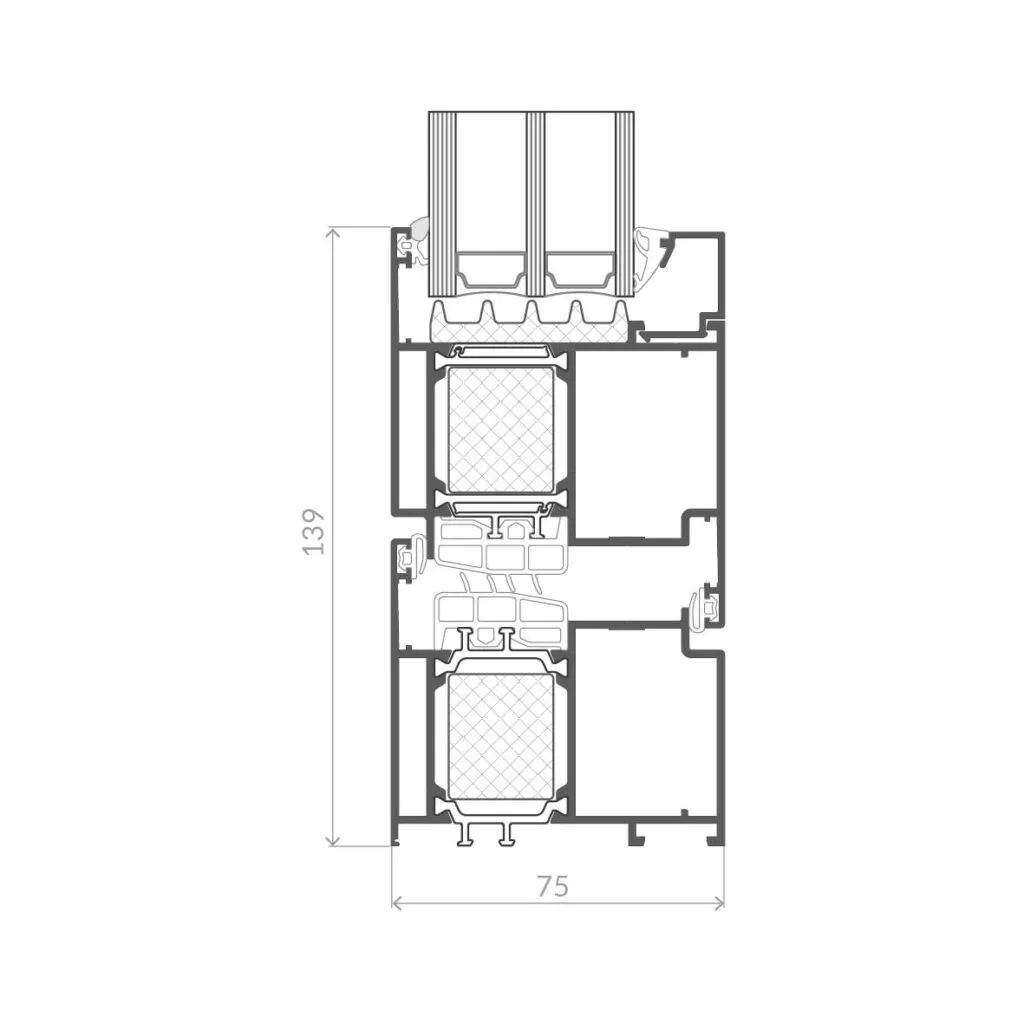

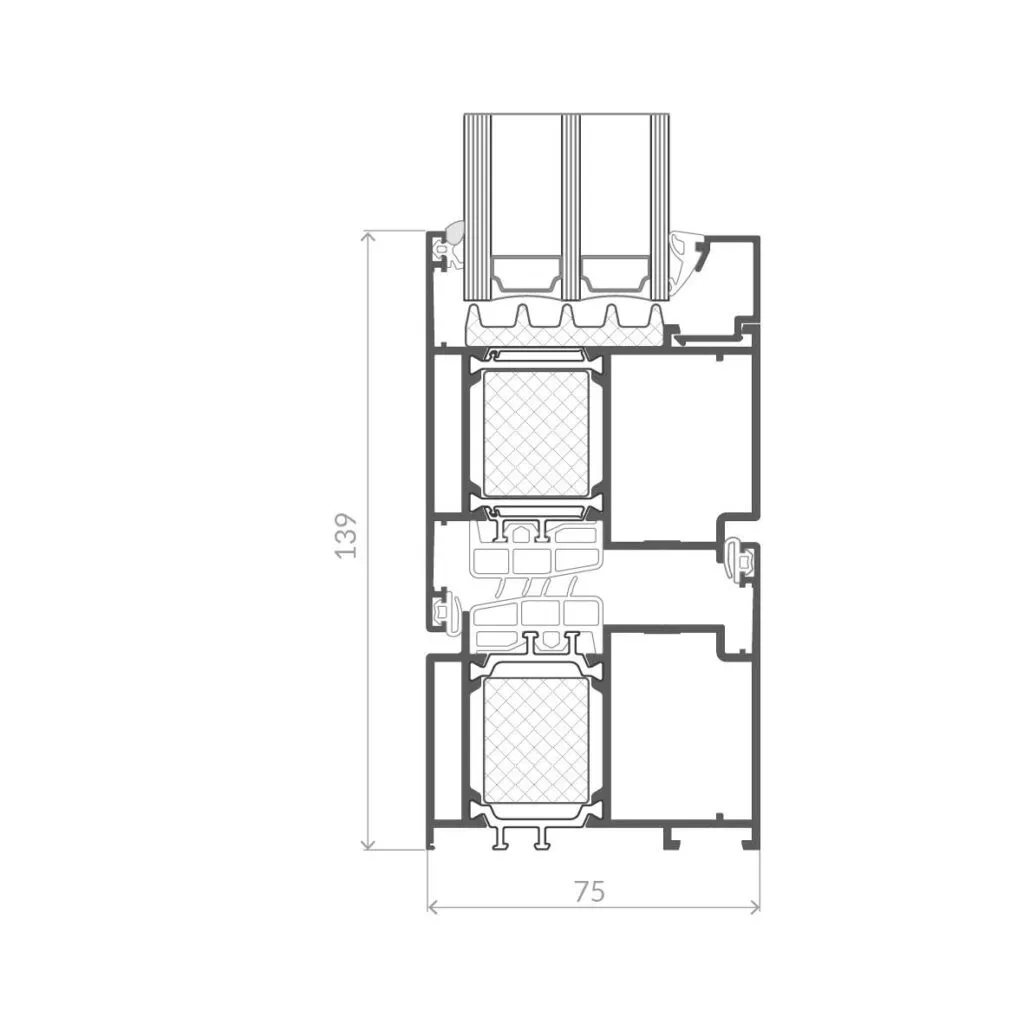

Three-chamber profile design
Adaptation to different conditions
Flexibility in the selection of hinges
Innovative threshold and aluminum foundation
AS 75
Modern design and advanced insulation.
The minimalist design of the AS 75 system is in line with the latest architectural trends.

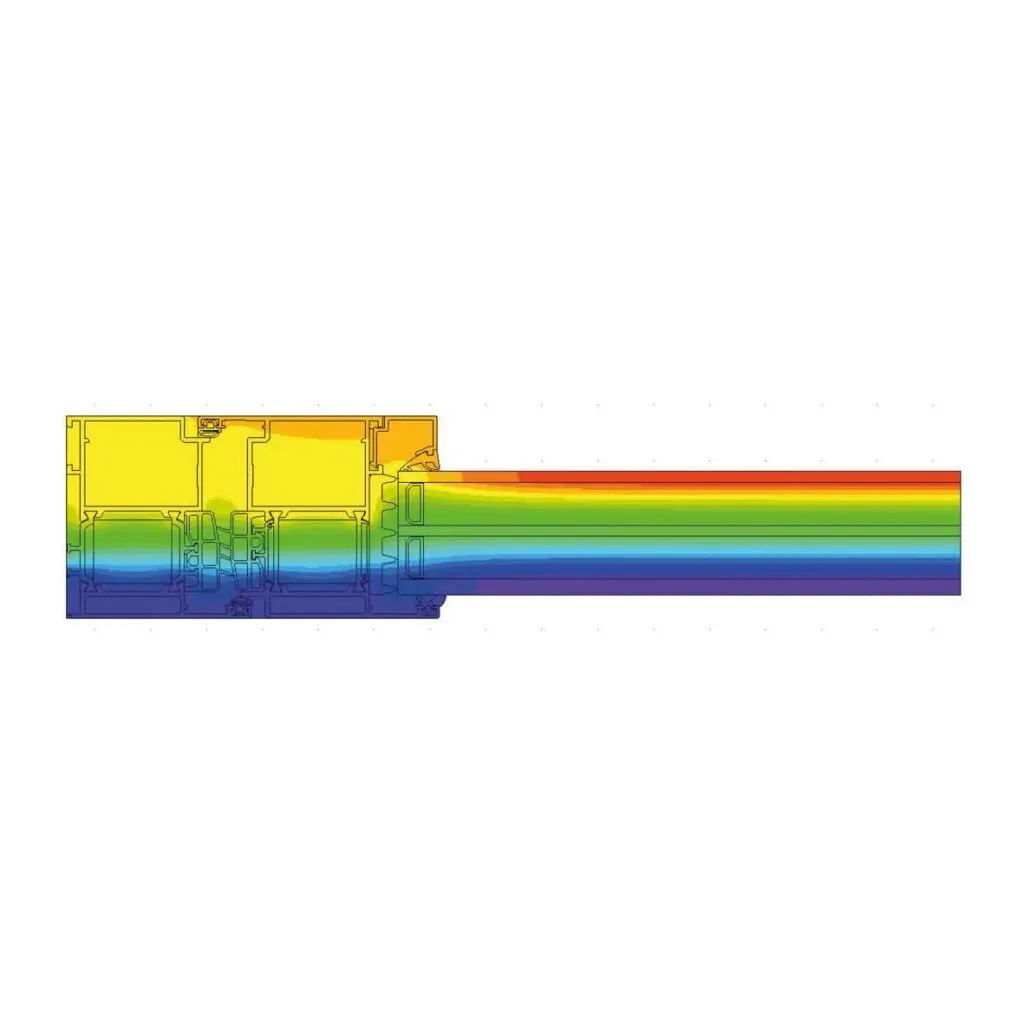

The three-chamber design meets stringent standards for thermal and acoustic insulation, thanks to the use of modern thermal insulators, ensuring energy efficiency and comfort.
Parameters and details
| Maximum sash height | 3000 mm |
| Maximum sash width | 1400 mm |
| Maximum wing weight | 280 kg |
| Depth of door profiles | 75 mm |
| Glazing range | 17-57 mm |
| Minimum visible frame width | 69 mm |
| Thermal insulating power Ud | of 0.93 W/m2K |
| Air permeability | class 4 |
| Waterproof | E1200 class |
| Resistance to wind load | Class C2 |
