Ventilation leaf
AS 75V
The AS 75V system has been designed for the construction of ventilation sashes that can be used in conjunction with facades or storefronts. The solution is fully compatible with AF 50, AF 50S, AF 50KW Quantum and ATF 50 facade systems, ensuring aesthetic and functional consistency in modern architectural designs.
Adjustment of sash dimensions
Ideal for tall structures
Effective drainage with aluminum cap
Optimal air circulation
AS 75V
An alternative to standard windows.
Structures based on the AS 75V system are a modern alternative to traditional windows, providing free air circulation and acting as an aesthetic architectural element.
The solution is based on the proven AS 75 window system, which allows for the optimization of materials, such as the common frame. As a result, the system makes it possible to create tall structures with inward-opening ventilated sashes, ensuring comfort and efficiency of use.
Parameters and details
| Max. window height | 3000 mm |

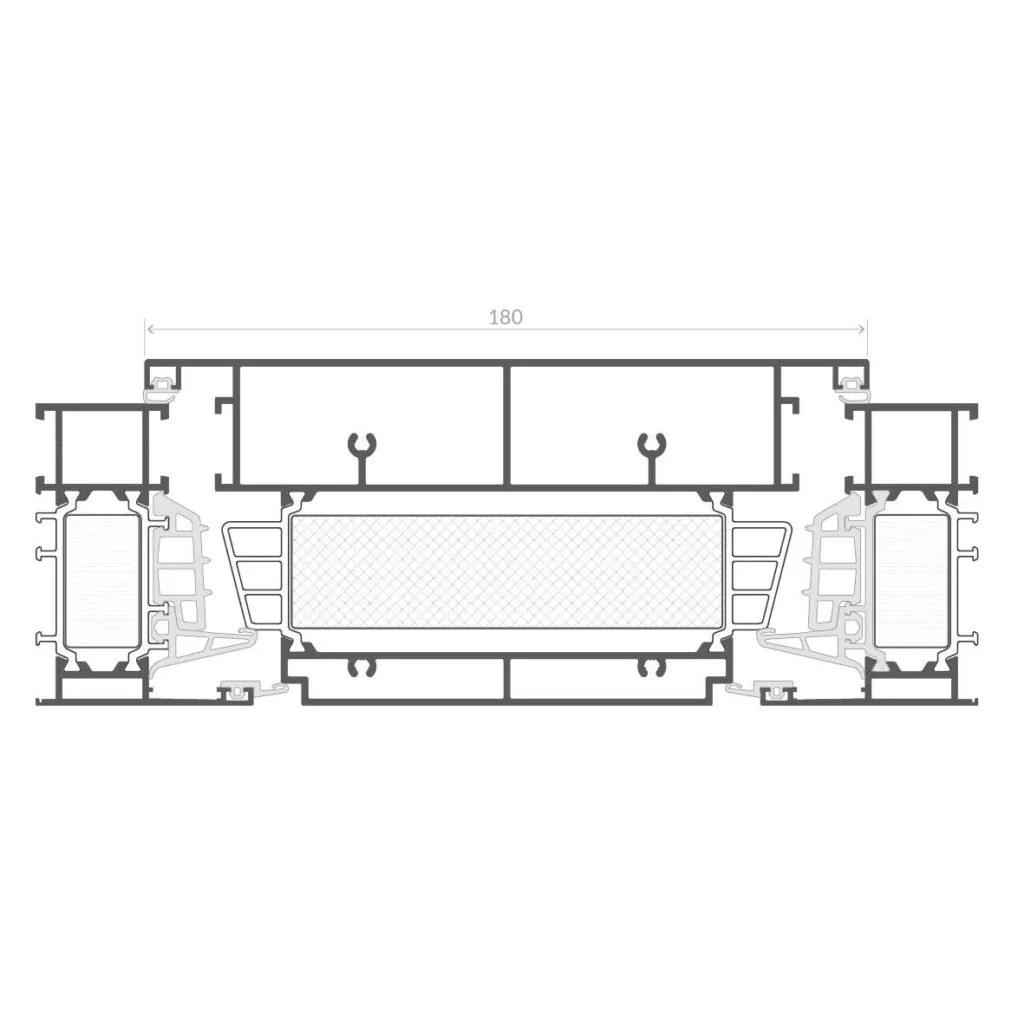

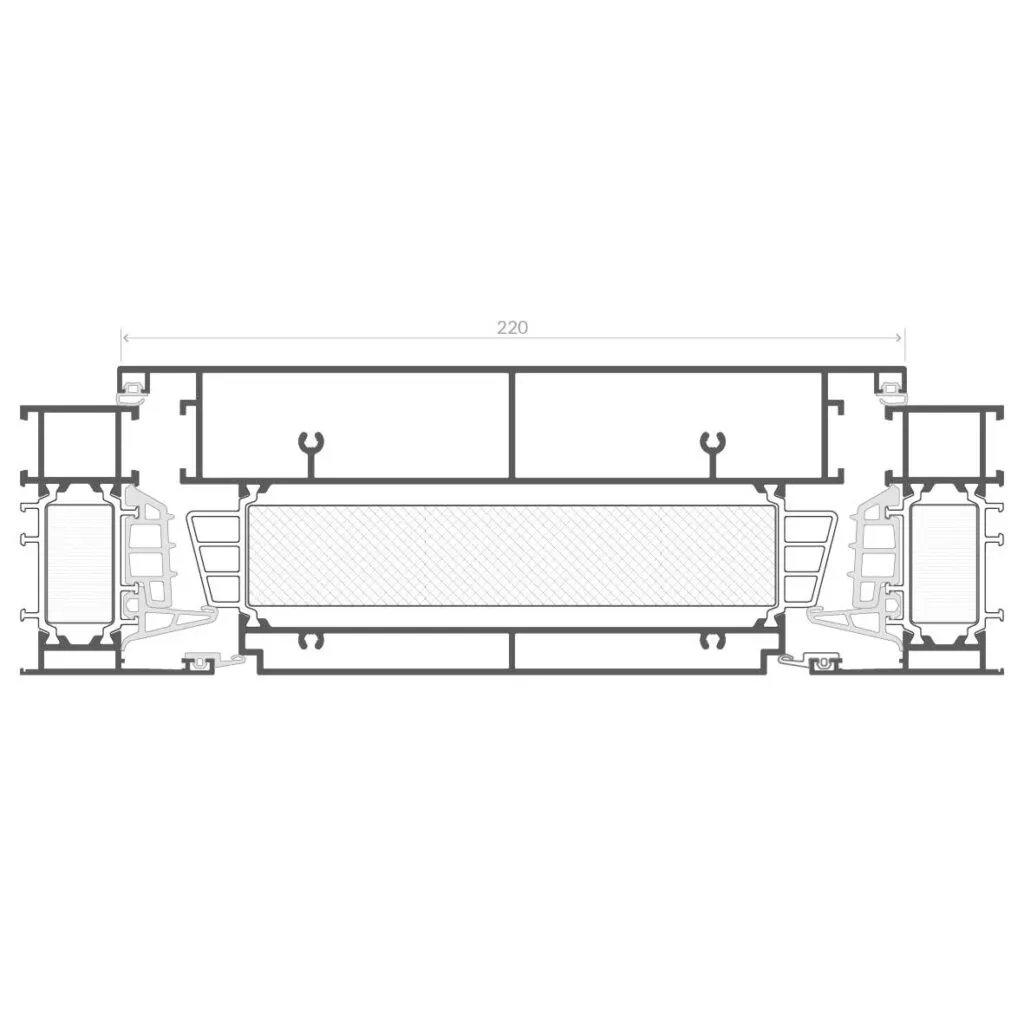

| Available sash widths | 180 mm, 220 mm |
| Frame depth | 75 mm |
| Thermal insulation Uw | from 0.9 W/m²K |
| Air permeability | Class 4 |
| Waterproof | E1500 |
| Resistance to wind load | Class C5/B5 |
Download the product sheet
