Concealed sash window system
AS 80US
A three-chamber system designed for the construction of single and multi-chamber windows, offering design flexibility and high performance. Available in four thermal variants, it allows precise matching of insulation to the energy requirements of the building.
Three-chamber construction of aluminum profiles
Hidden wing for minimalist design
Four thermal options for optimum efficiency
Flexible all-glass corner
AS 80US
Hidden wing for a uniform facade.
The AS 80US system is a solution created for projects where the window sash is to remain invisible from the outside of the building. Thanks to this, regardless of whether the window is fixed or openable, all elements of the facade maintain a uniform appearance.
In addition, the AS 80US is fully compatible with other aluminum systems, providing extensive design possibilities and harmonious integration with other structures.
Parameters and details
| Maximum sash width | 1400 mm |
| Maximum sash height | 2700 mm |
| Maximum wing weight | 200 kg |

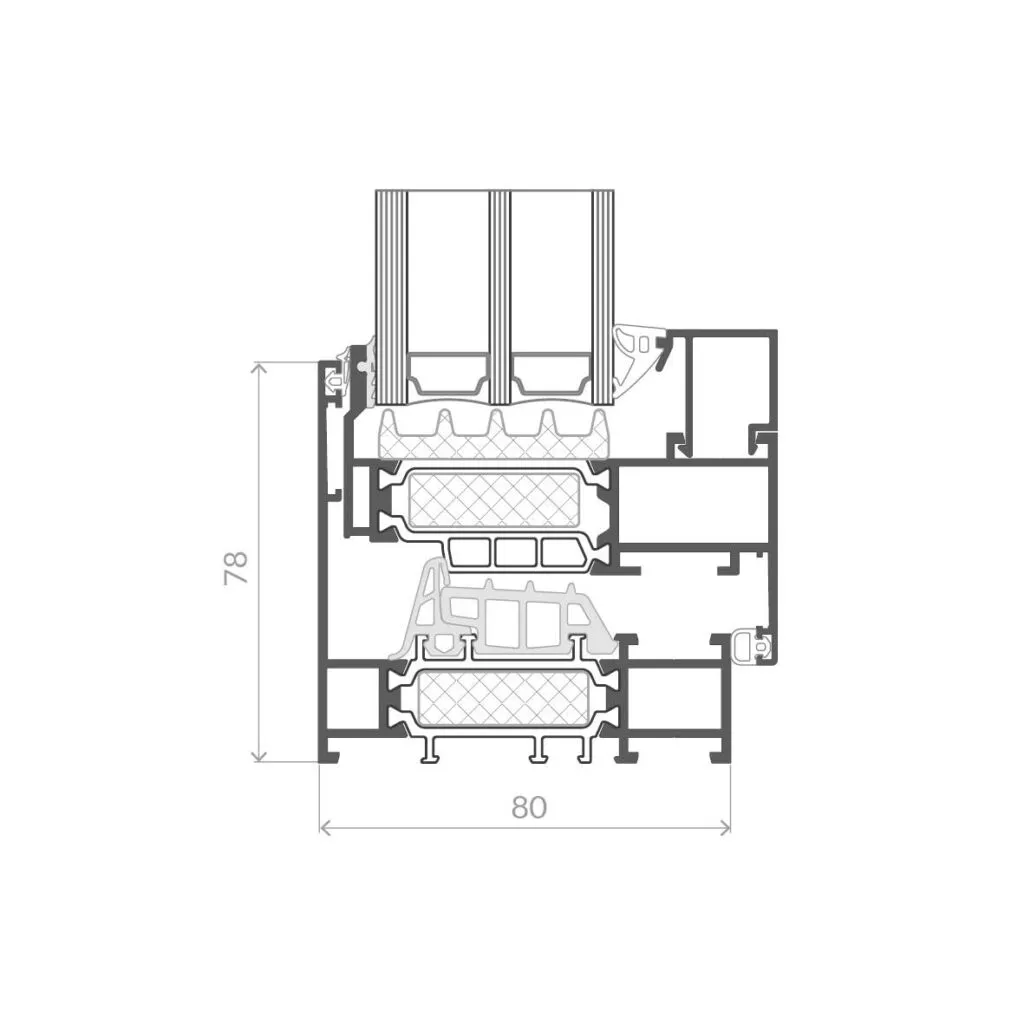

| Minimum visible frame width | 78 mm |
| Frame depth | 80 mm |

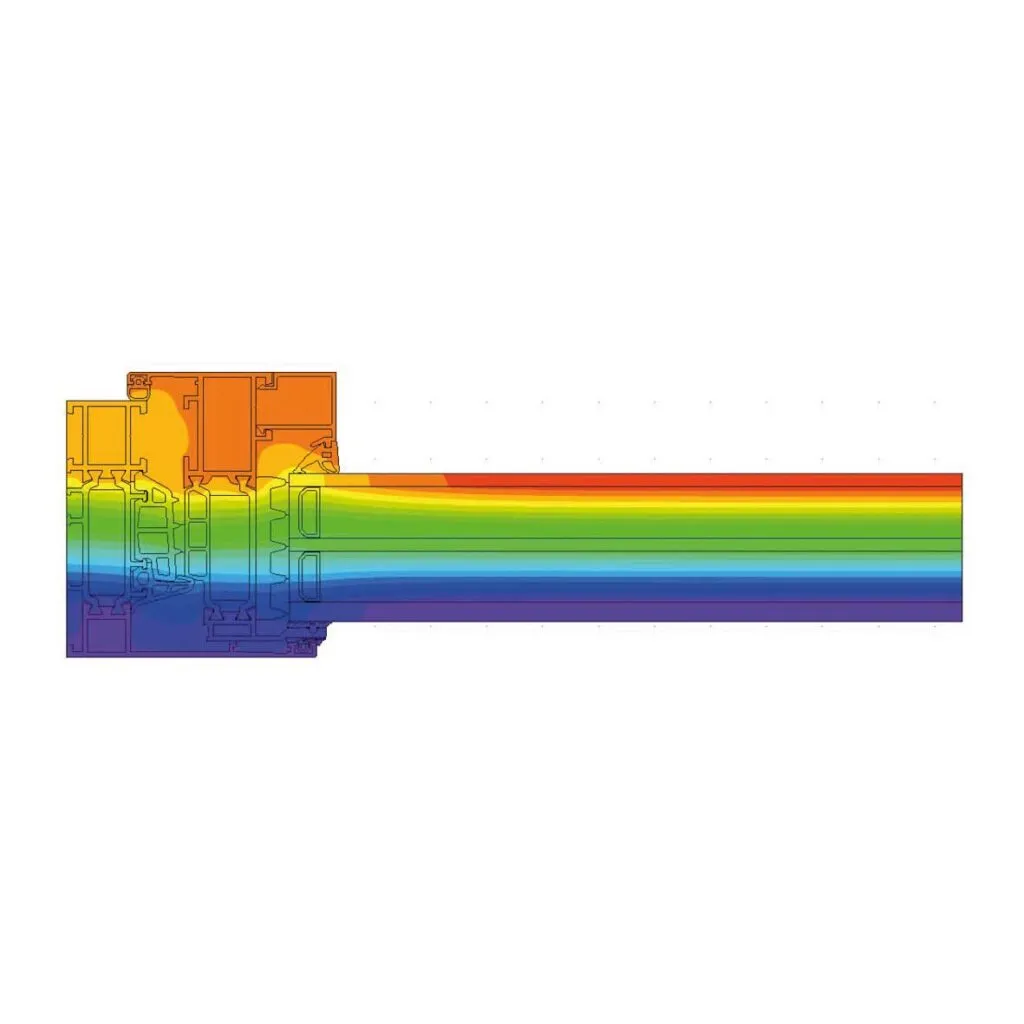

| Thermal insulation Uw | from 0.71 W/m2K |
| Air permeability | class 4 |
| Waterproof | Class E 2400 Pa |
| Resistance to wind load | class C3 |
| Mechanical strength | class 4 |
Download the product sheet
