Automatic door system
AS AD
Innovative solution for creating top-class automatic doors, characterized by minimal visibility of aluminum profiles. The design has been tested in accordance with PN-EN 16361, guaranteeing reliability, safety and high aesthetics.
Narrowest wing combination on the market

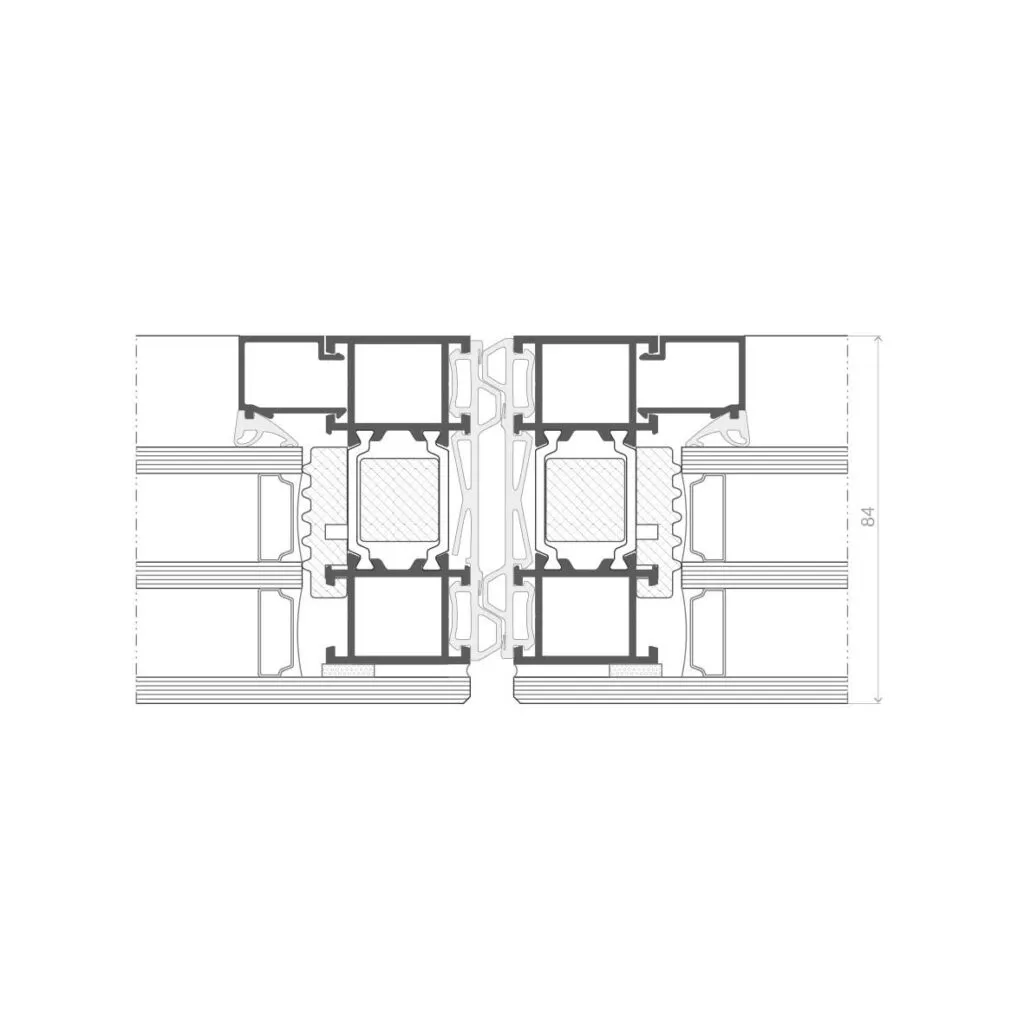

Elegant all-glass solution
Stylish aluminum drain plugs
A variety of sash guidance options
AS AD
Safe and energy-efficient AS AD door system.

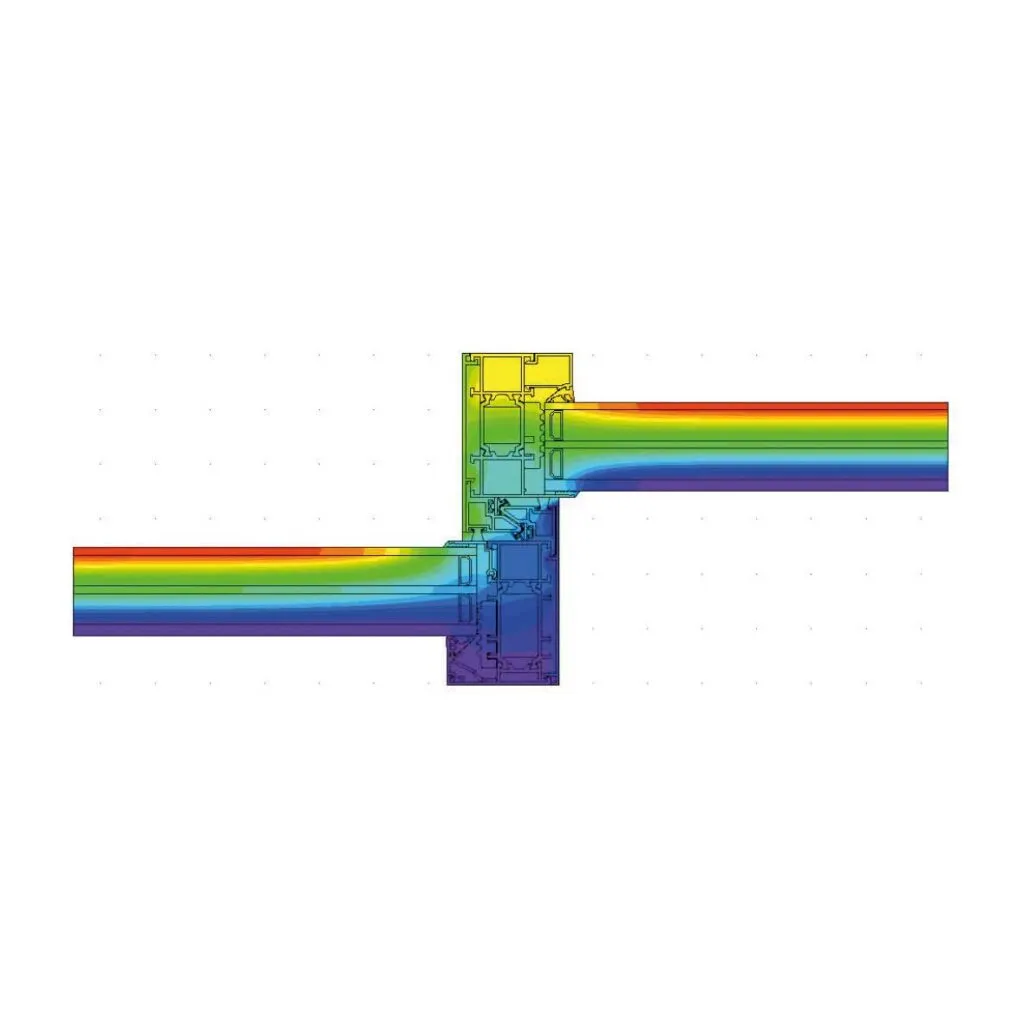

The AS AD system meets the requirements of the PN EN 16005 standard, ensuring safe locking and reliable operation. The construction based on aluminum sections with thermal break guarantees excellent thermal insulation.
AS AD doors can be made as an independent structure, mounted in a wall or integrated into a mullion and transom facade.
Parameters and details
| Maximum sash width | 2000 mm |
| Maximum wing weight | 200 kg |
| Depth of sliding sash without thermal insulation | 50 mm |
| Depth of sliding sash with thermal insulation | 75 mm, 52 mm |
| Wing depths | 70 mm, 72 mm |
| Thermal insulation Uw | from 0.8 W/m2K |
| Air permeability | PPD 2 |
| Waterproofing | Class E 250Pa |
| Resistance to wind load | PPD 4 deflection cl. C |
| Safety test | +/-600 Pa |
Download the product sheet
